Digital Yacht iSEASENSE Speed/Depth/Temp Pack Plus Wind
Model: ZDIGISSPK2- iSeaSense server creates beautiful graphic display pages of data with fast 5Hz updates viewable on any smart phone, tablet or iPad
- iSeaSense server creates beautiful graphic display pages of data with fast 5Hz updates viewable on any smart phone, tablet or iPad
- Includes extra NMEA 2000 T piece for system expansion allowing easy addition of sensors or displays
- Transducer for depth, boat speed, water temperature and boat heel/pitch with fast, super accurate 5Hz speed updates from 0.3 to 45 knot
- Data Update Rate: Depth: 1X/second, Speed: 5X/second, Heel/Trim: 10X/second
- 235KHz depth operation to minimise interference with 50/200KHz fish finders and sounders
- Max depth 100m
- Standard 2" thru hull size/diameter
Digital Yacht iSeaSense is a new range of complete marine instrumentation packs based on NMEA 2000 and wireless connectivity — allowing for maximum flexibility and connectivity. Choose from using phones, iPads and tablets for boat data displays as well as 3rd party industry standard instruments and multi function displays.
Top quality and highly accurate sensors are used for boat depth, speed, wind, compass and GPS data. Data can be shared with other devices on the NMEA 2000 network too.
iSeaSense includes the WND100 wind sensor with 20m cable and a interface to "T" directly to the NMEA 2000 backbone. It means there’s no heavy NMEA 2000 cabling to the top of the mast and no need for complex mast top terminations for the Wind Sensor.
iSeaSense also includes depth, speed and temperature sensor. A spatial sensor is also included for detecting pitch and roll and there’s a sophisticated algorithm for calibrating boat speed information based on heel.
A full NMEA 2000 backbone cabling back is included and the wireless interface for connectivity and there is a spare cable and connection point for additional NMEA 2000 devices.
With NMEA 2000, expanding the system is easy and you can add any Digital Yacht’s instruments such as GPS, AIS, electronic compass and more. You can also send the instruments data to your NMEA 2000 chart plotter or display.iSeaSense features an easy-to-use web interface. No apps are required. Simply open the browser on a connected device, navigate to iSeaSense.local and the optimised touch screen display is ready.
iSeaSense features an easy-to-use web interface. No apps are required. Simply open the browser on a connected device, navigate to iSeaSense.local and the optimised touch screen display is ready.
You can calibrate the wind sensor via the iSeaSense web interface and also displays true and apparent wind speed and angle plus VMG calculations.
The web interface works on iOS, Android, PC, Linux and MAC — any standard web browser as well as e-ink displays like Kindle and e-book. It supports up to 3 connected devices with super fast 5Hz updates.
The data can also be used by 100’s of popular navigation apps & software such as Navionics, TZ iBoat, OpenCPN, SailGrib, etc.

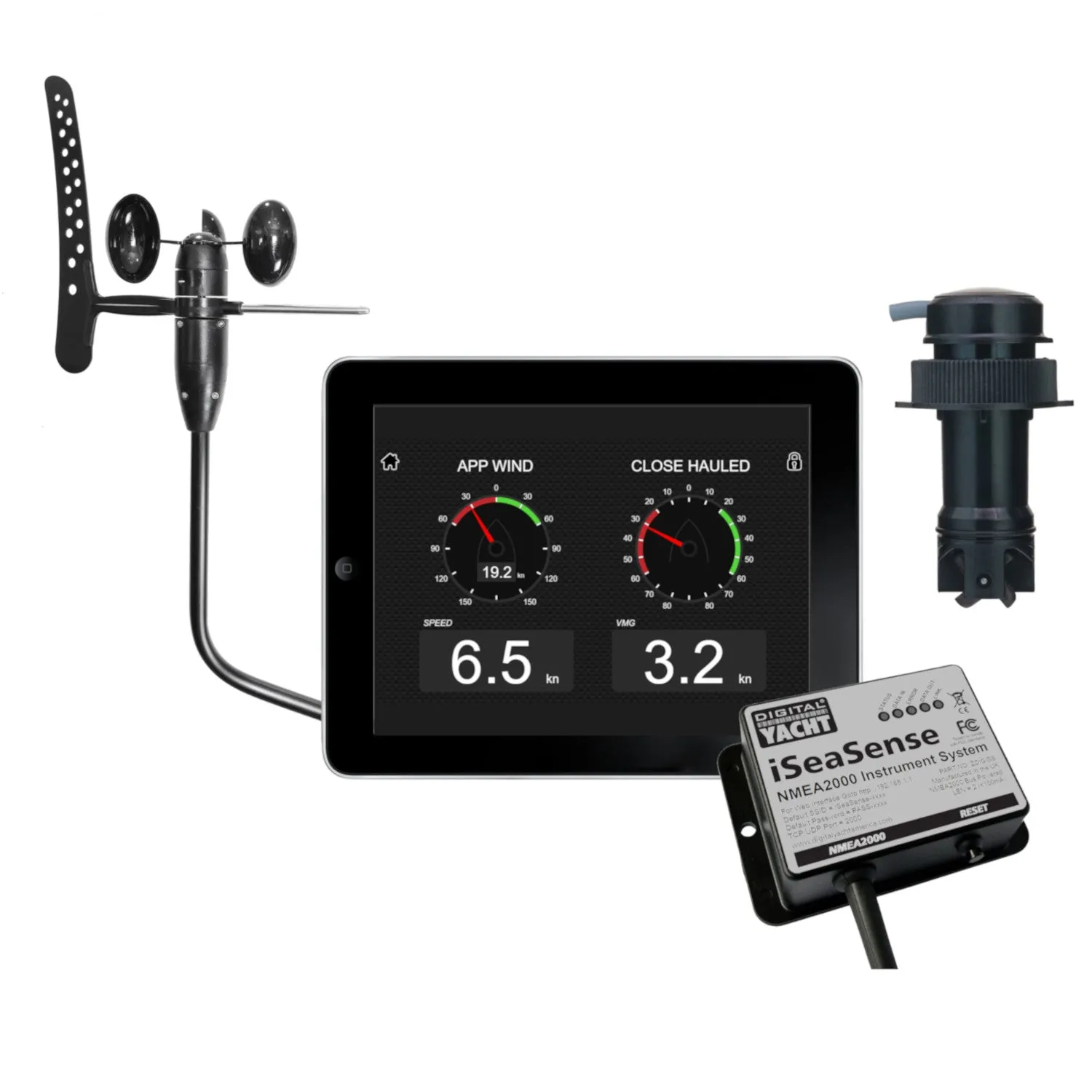

What's in the Box:
- iSeaSense wireless server
- NMEA 2000 cabling
- Advanced boat depth, speed and temperature transducer with pitch and heel sensor
- WND100 mast head wind sensor with 20m cable
