- COMPACT AND SPACE SAVING DESIGN: Inverter adopts independent air duct design, stable performance is superior. Interior upgrade design, more compact, saving more installation space
- APPLICABLE SCENARIO: Inverter is widely used in all kinds of three phase asynchronous motor speed regulation, to achieve motor speed regulation, energy saving and environmental protection, improve the production process, improve production efficiency and other functions
- OVERVOLTAGE SUPPRESSION When the busbar voltage reaches or exceeds the busbar overvoltage suppression point during the of the converter, the converter will automatically adjust the running frequency suppression busbar voltage rise, so as to ensure that the converter will not cause overvoltage due to high busbar voltage
- OVERCURRENT SUPPRESSION During , through real time monitoring of the load current, automatically limit does not exceed the set overcurrent suppression point, in order to prevent the fault trip caused by too much current. For some large inertia or drastic changes in the load, this function is especially suitable
- AND FLAME RETARDANT ABS: Vector converter is made of industrial flame retardant ABS plastic, which features high impact and heat , high flame retardant, and high safety and reliability
Specification:

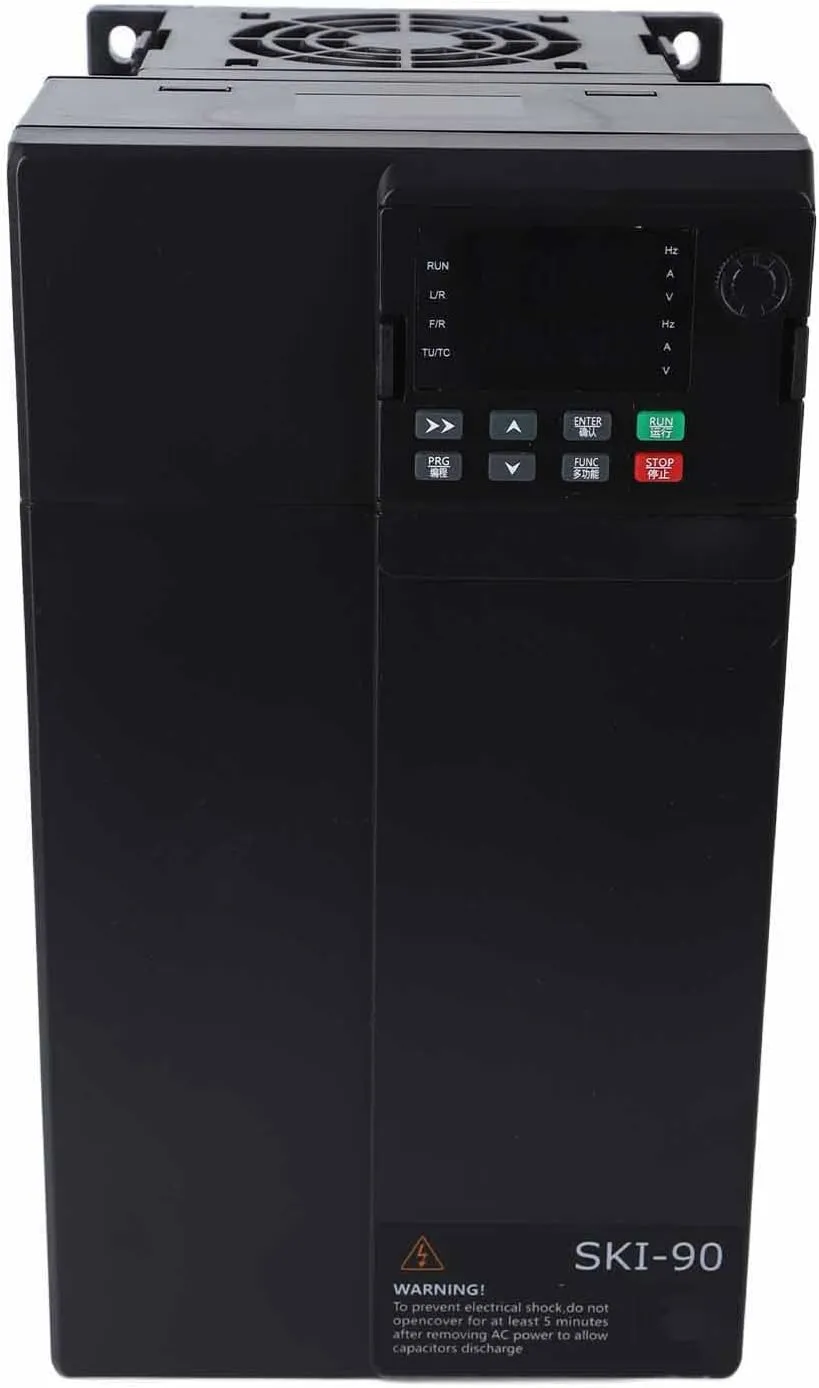

Item Type: Vector Frequency Converter
Material: Flame retardant ABS
Input: 3PH AC380V±15% 35A 50-60Hz
Output: 3PH AC0-380V 32A 0-400Hz
Power Supply Capacity: 21KVA
Adaptive Motor: 15KW 20HP
Category Terminal symbol Terminal name Function description
Power supply 10V-GND External 10V powersupply External supply 10V power supply, maximum output current: 150mA (with short circuit protection)Generally used as an external potentiometer working power supply,Potentiometer range: 1kΩ~5kΩ
24V-COM External 24V powersupply To provide external 24V power supply, generally used as a digital input/output terminal workPower supply and external sensor power supplyMaximum output current: 200mA
Analog terminal Al1-GND Analog input terminal 1 1. Input range: DC0V~10V/0mA~20mA, determined by parameter P4372, input impedance: voltage input impedance 22kΩ, current input impedance 500Ω
AI2-GND Analog input terminal 2 1. Input range: DC0V~10V/0mA~20mA, determined by parameter P4-372, input impedance: voltage input impedance 22kQ, current input impedance 500Ω
AO1-GND Analog outpu
